※ Ultra-thin and simple design
※ TYPE-C USB Charging
※ DIY modular assembly
※ Multimodal change
※ High efficiency, energy saving, environmental protection
Features
※ Ultra-thin and simple design
※ TYPE-C USB Charging
※ DIY modular assembly
※ Multimodal change
※ High efficiency, energy saving, environmental protection
Technical Parameters
Model No. | CL-TD02 |
Product size | 130*130*292mm |
Power (W) | 1 W |
LED Type | 5050RGB+2835 |
LED Qty(PCS) | 5050RGB(20PCS)+2835(19PCS) |
CCT (K) | 3000K / 4000K /5000K |
CRI (Ra) | >80 |
Luminous flux (lm) | 75±10% |
Battery type | Polymer Li-on Battery |
Battery capacity | 3.7V/2000mAh |
Touch key function | ON/ MODE/OFF |
Shell material | Iron+ABS+PMMA |
Operation Temperature | -20℃~+45℃ |
Storage Temperature | -25℃~+55℃ (25℃ is best-fit) |
Applications：Living room, bedroom, toilet, corridor, bedside, basement, garage, bar, and other home atmosphere lighting.
Packaging products and accessories | |||
Photos | Part name | Specification | Quantity |
| Lamp body
| 130*26mm | 1pcs |
| Lamp base | Ø120*6mm | 1pcs |
| Connecting linkage | Ø11.5*260mm | 1pcs |

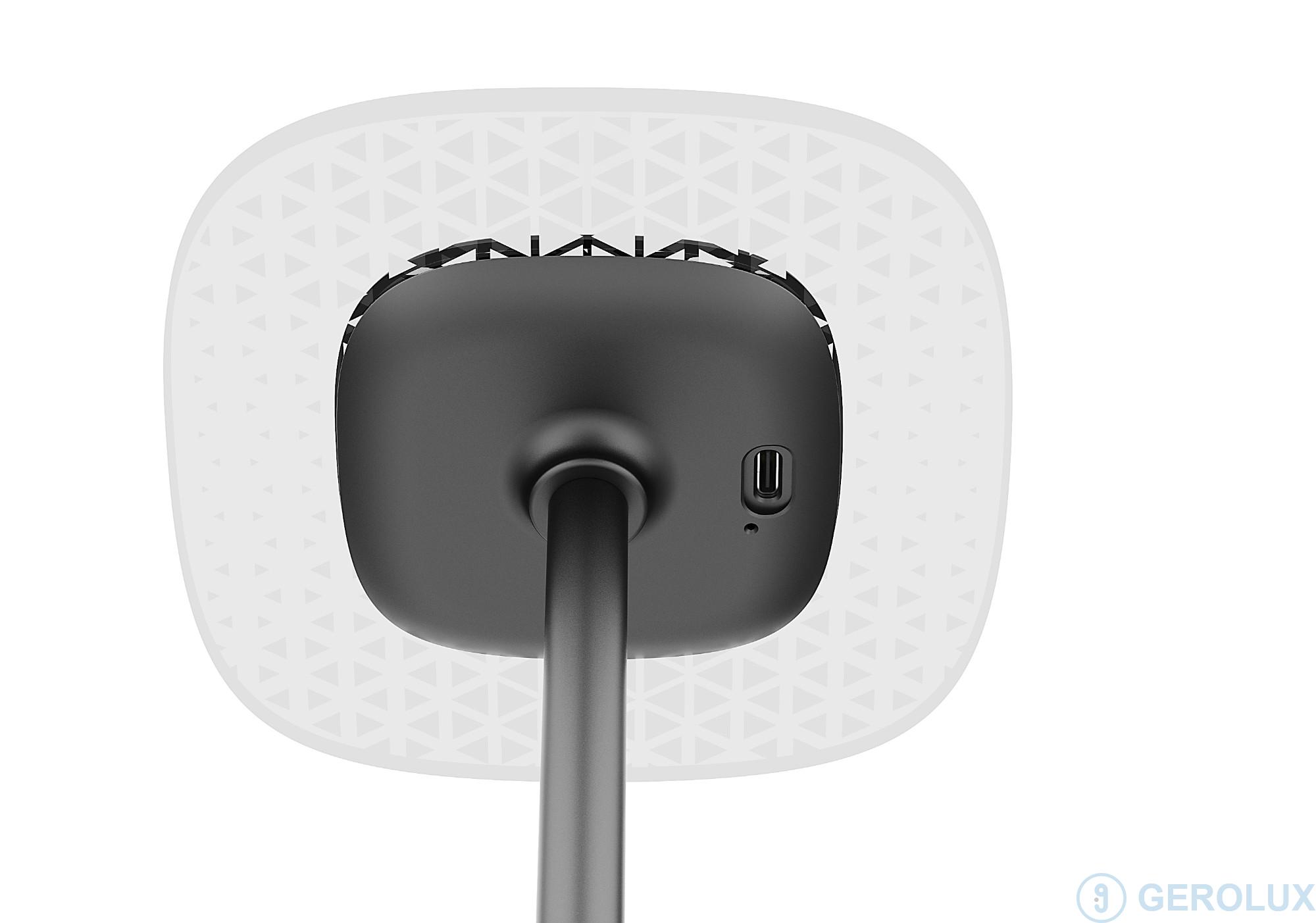

| TYPE-C | 250mm | 1pcs |
Direction for use：
1. Charge it for the first time.
2. The top of the desktop atmosphere lamp is designed with a touch switch, click to open, and then click switch mode (a total of three modes, two RGB magic color + warm white mode), and then click to cut off the light, long press the endless dimming state, with memory function, TYPE-C charging port, widely used, easy to use.
